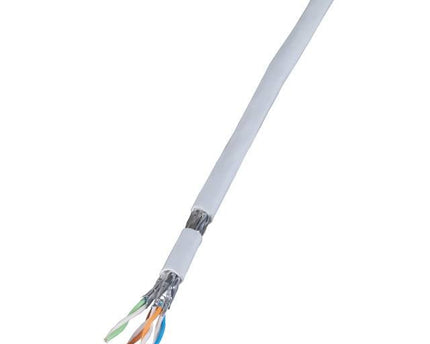

Draka S/FTP dubbel afgeschermde kabel soepel 100% koper 100 meter S/FTP CAT 7 AWG 26/7 kleur grijs 100M 4 x 2 AWG 26/7 Halogeenvrij 1000MHz 100% koper
Cat.7 Patch cord - overtakes the requirements of ISO/IEC 11801, IEC 61156-6, EN 50173- 1 and EN 50288-4-2 Useable for all ICT - applications up to class F according to EN 50173-1 and ISO/IEC 11801, furthermore also for multimedia - applications in CATV - frequency range up to 862 MHz according to IEC 15018 Suitable for performance of Power over Ethernet (PoE) / PoE+
Category:
7
Conductor category:
Kl.1 = single wire
AWG-size:
26
Conductor material:
CU, tinned
Screen over stranding:
braiding
Stranding element:
pairs
Screen over stranding element:
foil
Number of cores:
8
Core insulation:
foam-skin PE
Core identification:
colour
Operating temperature, flexible:
0 – 50 °C
Operating temperature, fix:
-20 – 60 °C
NVP value:
79 %
Material outer sheath:
FRNC-B
Flame retardant:
according to EN 60332-1-2
Halogen free (acc. EN 50267-2-2):
True
Low smoke (acc. EN 61034-2):
True
