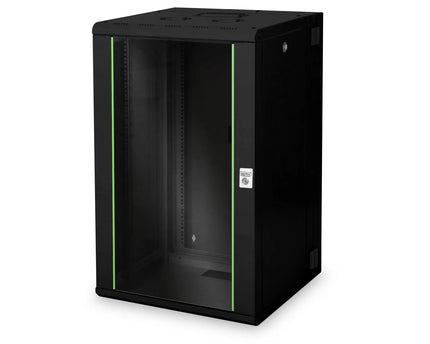

20U wall cabinet, Unique, 998x600x600 mm double section, rotatable, black (RAL 9005)

Product form

20U wall cabinet, Unique, 998x600x600 mm double section, rotatable, black (RAL 9005)

Technical details Safety class IP20 Lockable safety glass door with steel frame 210° door opening angle Housing is connected to... Read more

SKU: DN-19 20-U-3-SW

Delivery time 3-5 working days

(€550,55 Incl. VAT)€455,00


    Need a larger quantity?

    • check Lowest price guarantee!
    • check Shipping from just €5.95
    • check Pay afterwards after 14 days
    • check 2 year warranty on your purchase

    Can we help you with anything? Can we help you with anything?

    Do you have any questions or need advice? We are happy to help you!


    Contact us!

    Additional products

    Technical details

    • Safety class IP20
    • Lockable safety glass door with steel frame
    • 210° door opening angle
    • Housing is connected to the rear frame with a separate locking mechanism (incl. individual key).
    • 102° rotatable angle of the housing relative to the frame
    • 1-point locking mechanism on the front door
    • Side panels are lockable and removable
    • 483 mm (19") profile rails mounted on the front inside the cabinet, galvanized
    • 483 mm (19") profile rails are depth-adjustable and equipped with height unit markings
    • Rear frame with 483 mm (19”) cutouts
    • Maximum installation depth: 440 mm
    • Cable entry at the rear and bottom with plastic cover and top with sliding cover
    • Rear frame with brush strip for cable entry at the top and bottom
    • Roof is prepared for fan units (punched out entrances)
    • Ventilation slots for active and passive ventilation and extraction
    • Multiple grounding points for rack components
    • Incl. mounting kit (screws, cage nuts, washers)
    • Rack is fully assembled
    • Installation depth equipment min.-max.: 375-440 mm
    • Cabinet type: Wall mounted cabinet
    • Colour: black, RAL 9005
    • Depth: 600 mm
    • Front door: Glass door, single opening
    • Load capacity: 80 kg
    • Side panels: Both sides
    • Units: 20
    • Width: 600mm
    • IP protection class: IP20
    • Mounted: yes

    Package contents

    • Ground wire set
    • Mounting kit (screws, cage nuts, washers)
    • 2 x keys
