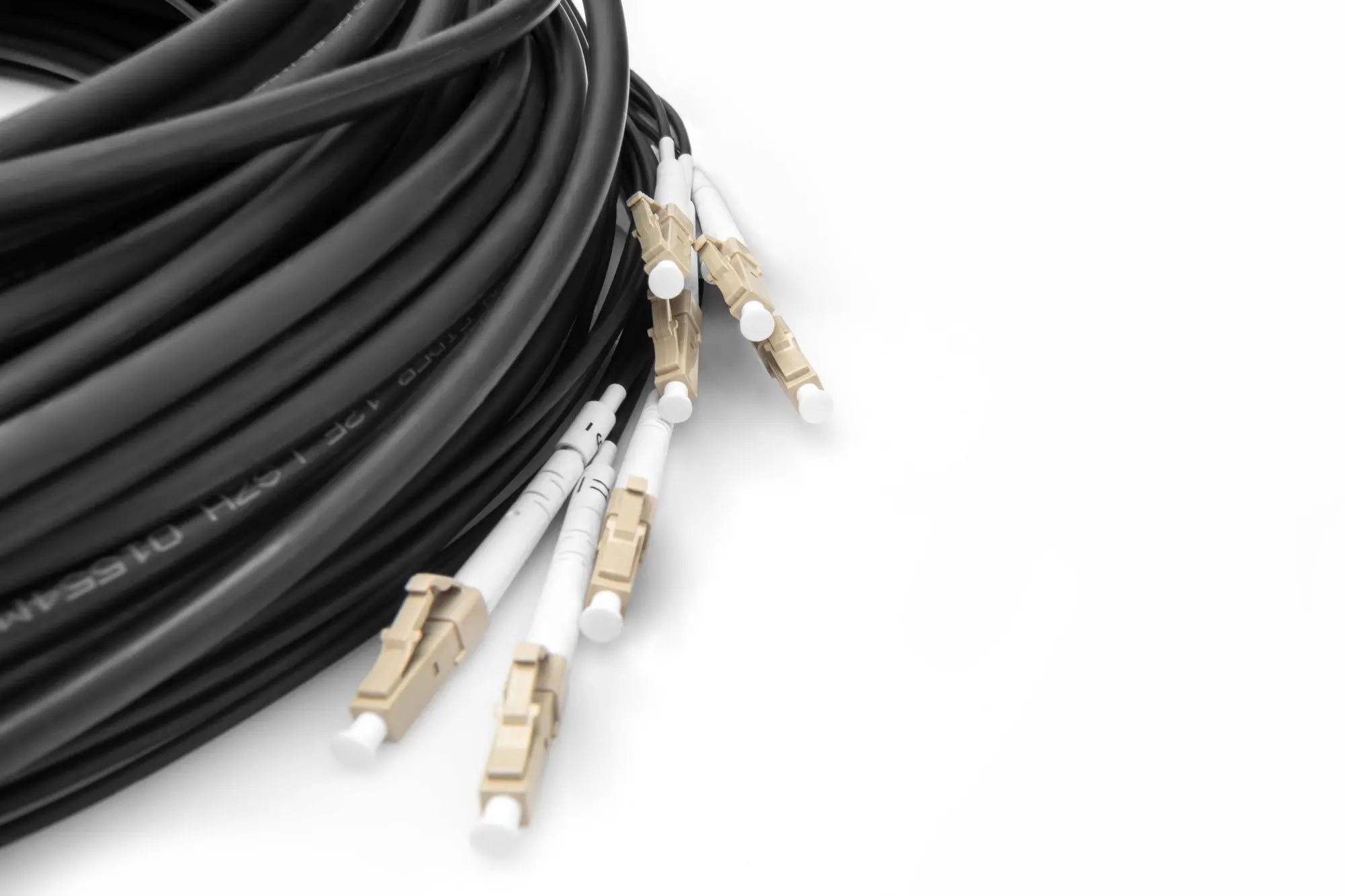

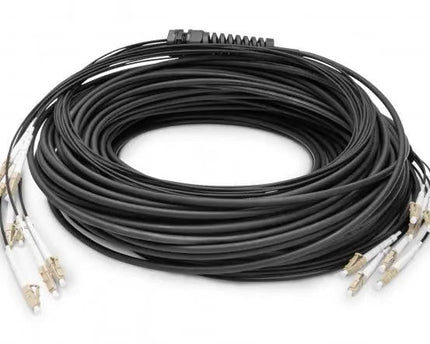

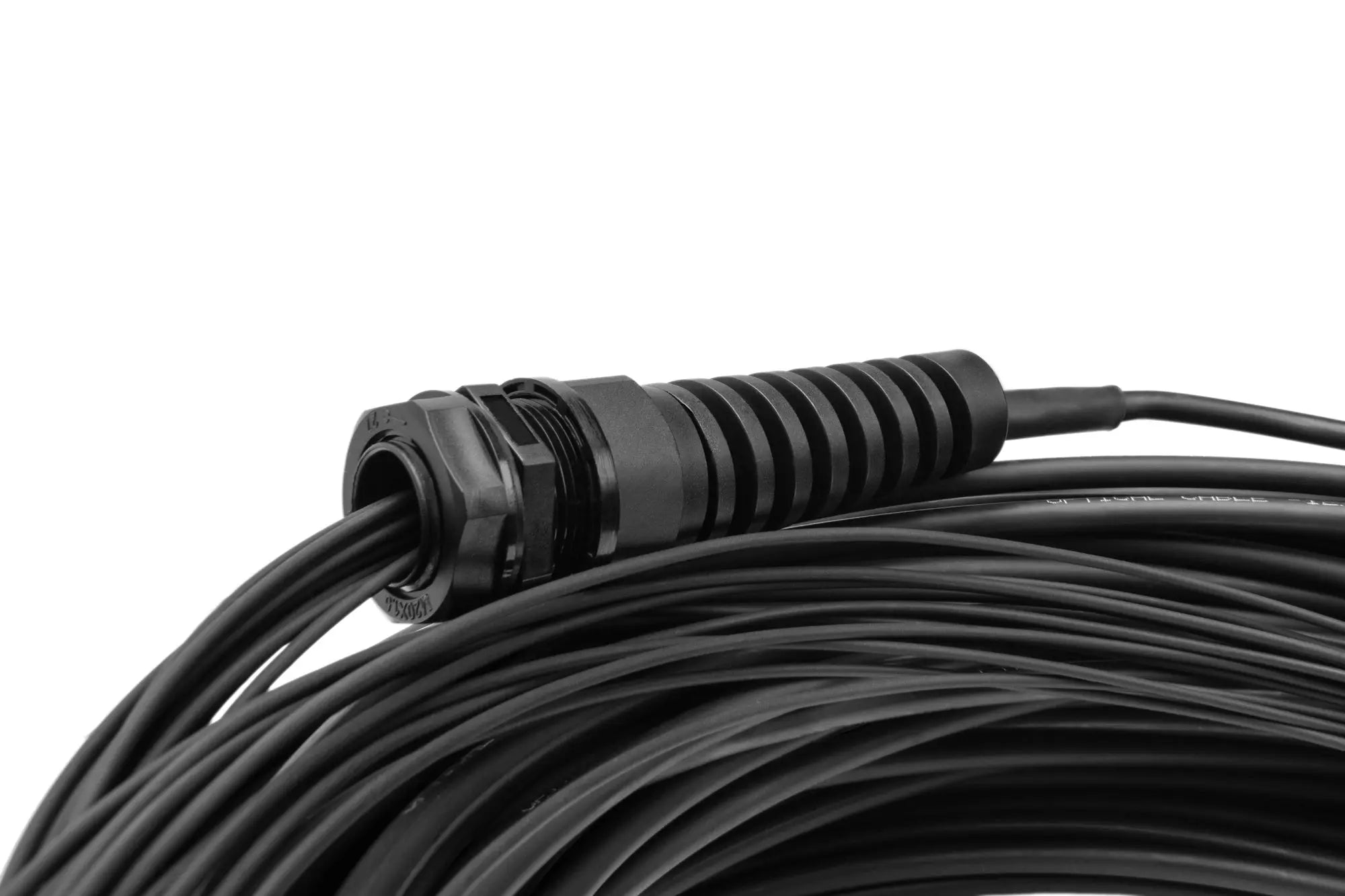

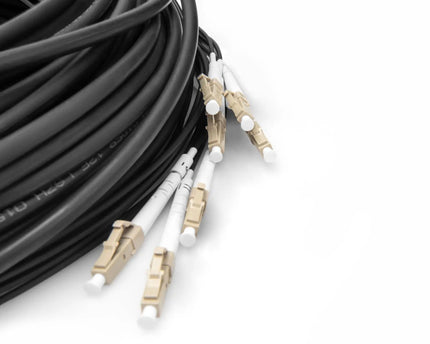

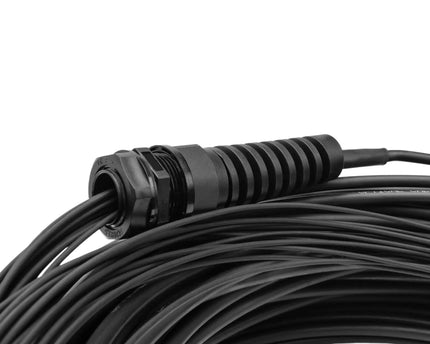

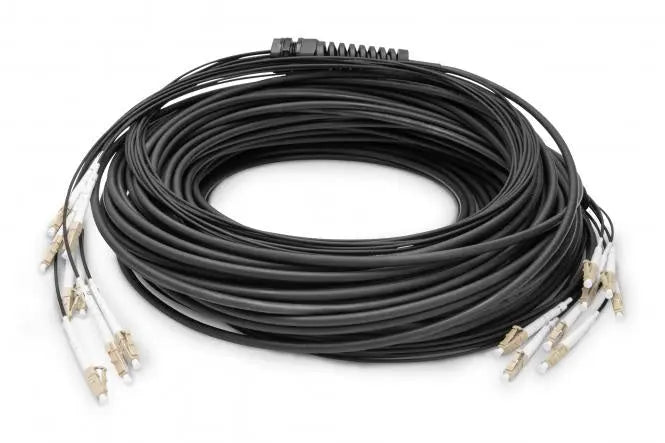

This pre-assembled breakout fiberglass cable is perfect for installations that require an extremely robust and reliable fiberglass design where maximum mechanical protection is necessary. It offers a secure Plug & Play solution for installations with the pre-assembled plug. Easy installation on partially equipped patch panels, for example. The measurement report included in delivery eliminates the need for laborious follow-up inspection.
TECHNICAL DETAILS
Cable type: Breakout / Universal cable (I/A-DQ (ZN) BH X G 50/125µm)
Fiber category: Multi mode
Fiber type: OM4 50/125

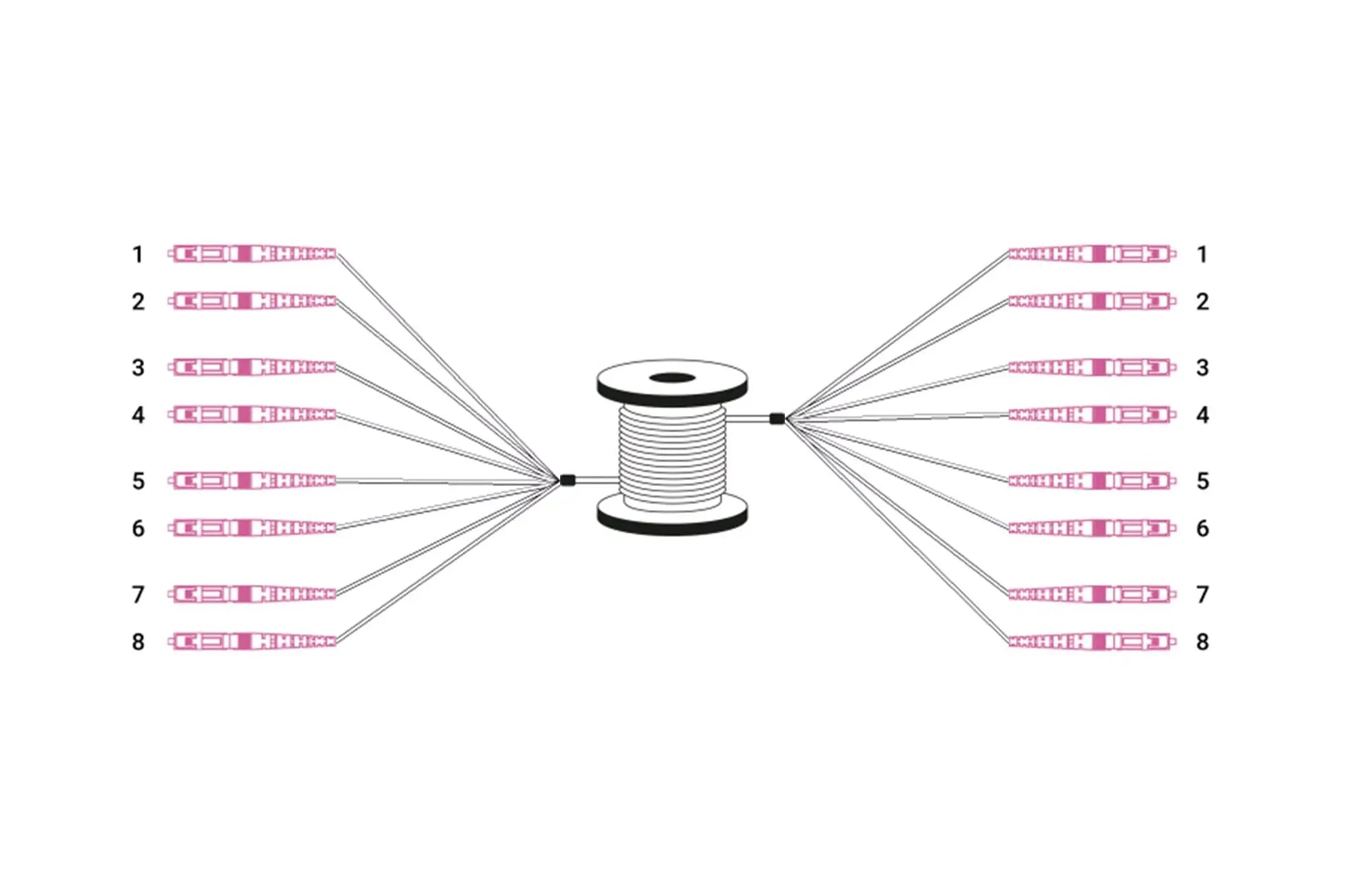

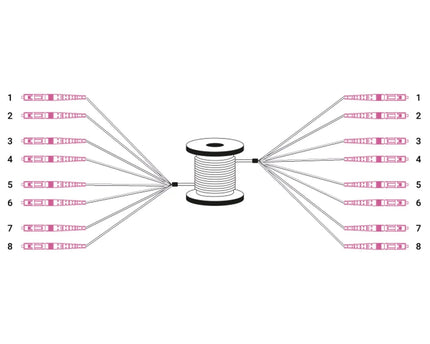

Number of strands: 8
Length: 30

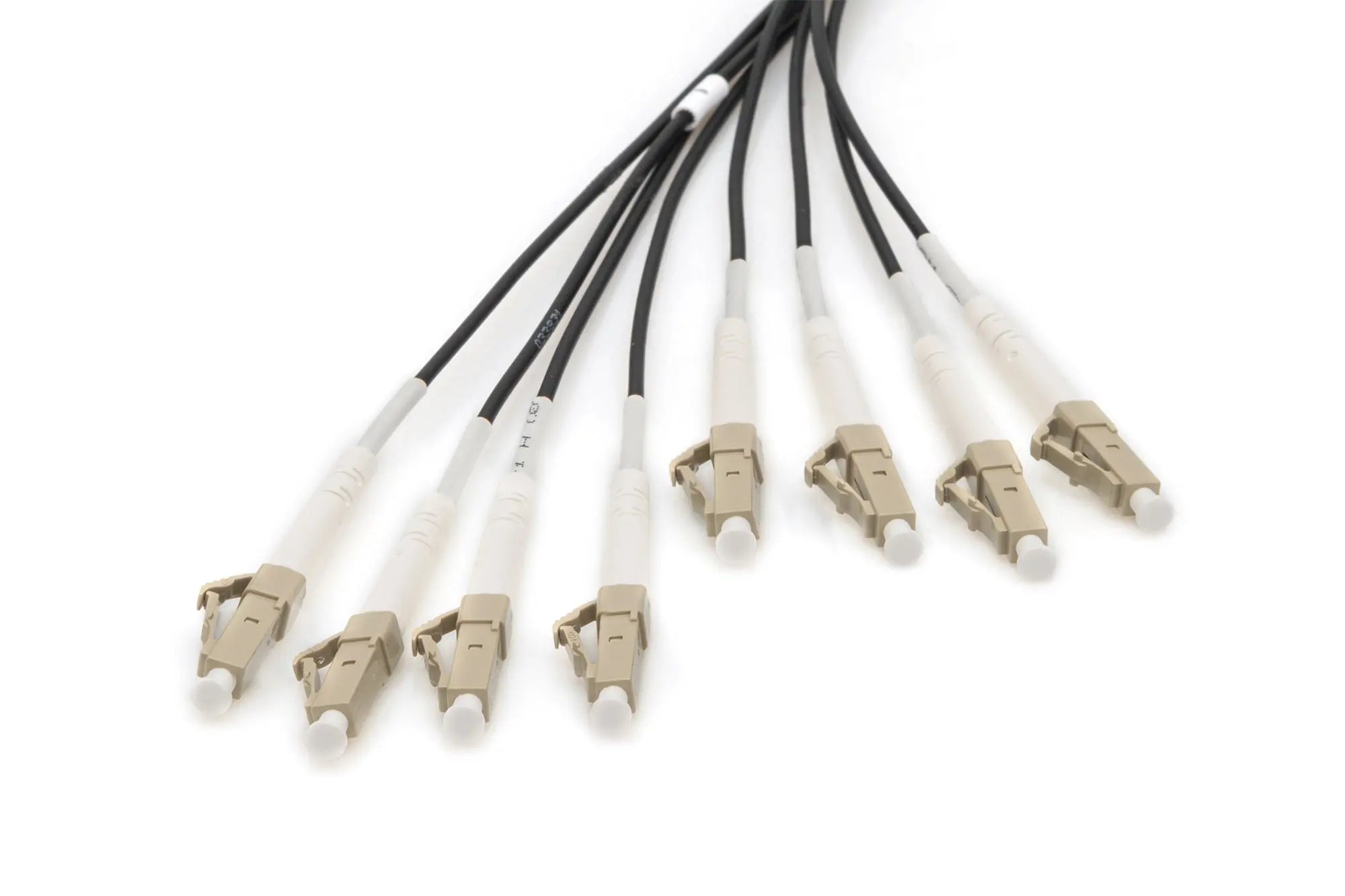

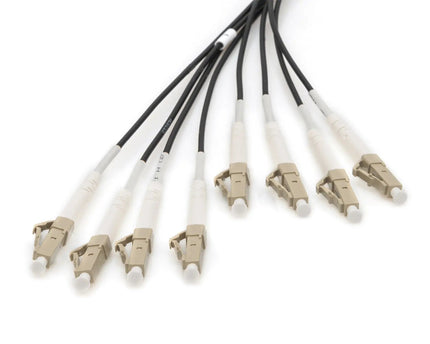

Plug connection 1: LC/UPC
Plug connection 2: LC/UPC
Sheath material: Dca
Color of outer sheath: Black
Halogen-free (in accordance with EN 50267-2-3): Yes
IL in multi mode: max. 0.3 dB
IL in single mode: max. 0.3 dB
RL in multi mode: min. 30 dB
RL in single mode: min. 50 dB
Operating temperature: -20 to 70℃
Storage temperature: -20 to 70℃
Two-sided insertion tool for secure installation
Application: universal
Boot: single-color
Cable jacket: LSOH
Cable type: U-DQ (ZN) BH X E 9/125µm
Color cable: black

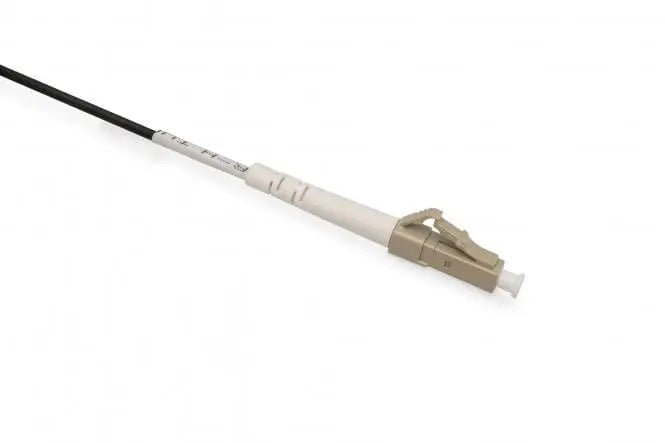

Connector 1: LC
Connector 2: LC
Fiber class: OM4
Fiber diameter: 50/125µ
Mode: Multimode
Number of connectors side 1: 1
Number of connectors side 2: 1
Number of fibers: 8
Polishing: UPC
Length: 30 m
