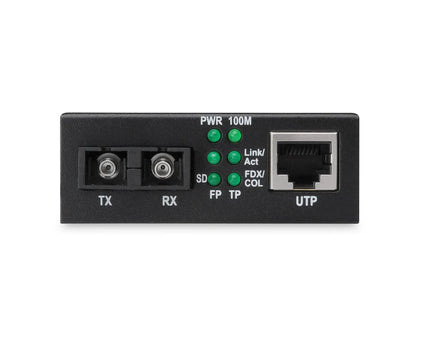

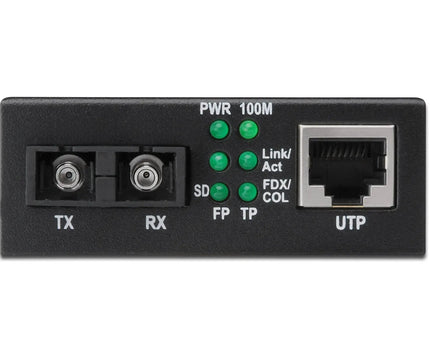

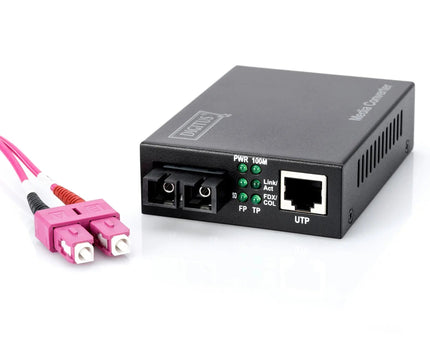

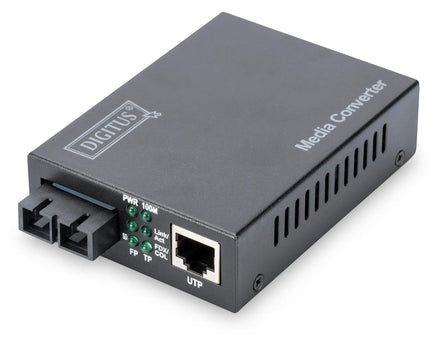

Fast Ethernet Media Converter, RJ45/SC
Fast Ethernet Media Converter, RJ45/SC
(€37,87 Incl. VAT)€31,30
SKU: DN-82020-1
✅ Laagste prijsgarantie!
✅ Verzending vanaf slechts € 4,95
✅ Betaal achteraf na 14 dagen
✅ 2 jaar garantie op je aankoop
Can we help you with anything?
Do you have any questions or need advice? We are happy to help you!
Contact us!
Ask your question
Our product specialist is happy to help you find the right product.
Technical details
- Transforms wire-based networking media to fiber optic
- High quality and excellent reliability
- 10/100Base-TX to 100Base-FX
- Connections: 1x RJ45, 1x SC duplex
- Distance up to 20 km
- Wavelength: 1310nm
- Singlemode dual fiber
- Automatic cable detection - auto MDI / MDI-X function
- Automatic negotiation of full and half duplex
- Diagnostic and monitoring LEDs for power, connection and port operation status
- Link Fault Pass Through (LFP) function for easier network maintenance
- Suitable for 9/125µm fiber optic cables
- Transmit power: Minimum -15 dBm, Maximum -8 dBm
- Sensitivity Receiving Power: Minimum -38 dBm
- Supported standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet
- 128kB data buffer
- Operating temperature: 0 to 55°C
- Dimensions (L x W x H): 95mm x 70mm x 26mm
- Weight: 200g
- Standalone converter with external power supply
- Input voltage: 5V DC
- Maximum current: 800mA
- Power consumption: 2.5W
- Connection 1: RJ45
- Connection 2: SC
- Mode: Singlemode
- Distance (km): 20
- Industrial use: no
- Broadcast Mode: Unidirectional
- PoE injector: no
- Ethernet Speed: Fast Ethernet
