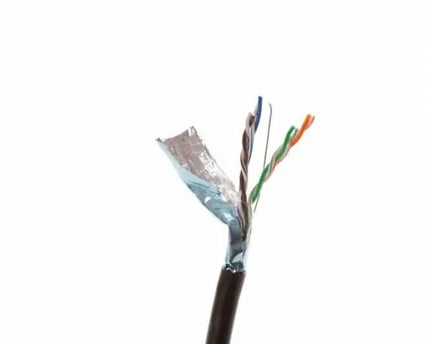

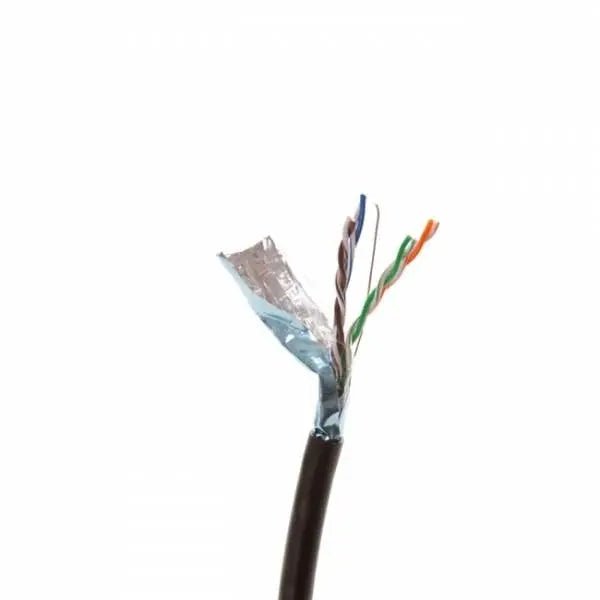

The Cat5e F/UTP is a shielded twisted pair (F/UTP) category 5e, designed for constructing external structural networks. The screen is made of aluminium foil.

The diameter of one-strand wires made of 100% copper is 0.515mm (24AWG). The length of the cable is 305m.

The wire insulation is made of high-density polyethylene (HDPE) with high mechanical resistance. The diameter of an insulated conductor is 1.03mm.

The grounding line is made of tinned copper.

The cable has two coats made of polyvinyl chloride. The colour of the top coat is black RAL9005. The outer diameter of the cable is 6.2mm.

Package: roll.

• External application
• A one-strand conductor made of 100% copper
• Diameter of wires - 0.515mm
• Insulation of wires - HDPE
• Diameter of insulated conductor - 1.03mm
• The grounding cable with tinned copper
• A double PVC cable coat. The colour of the top coat is black RAL9005
• Outer diameter of the cable - 6.2mm
• Length counter printed at every meter of the cable
• Compliant with UL, EIA/TIA 568B.2-10, ISO/IEC 11801
• Package: roll
