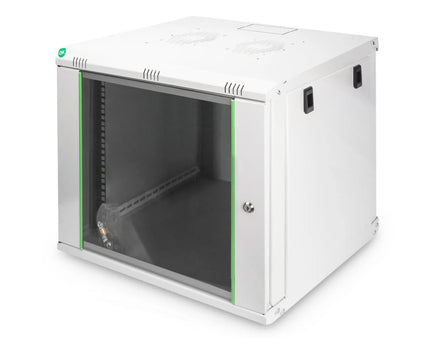

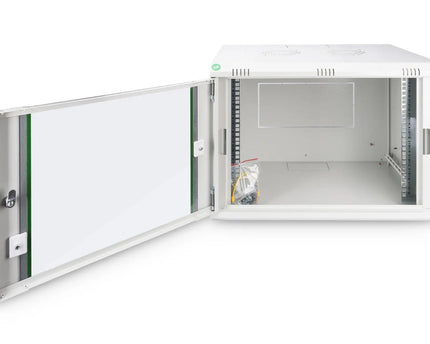

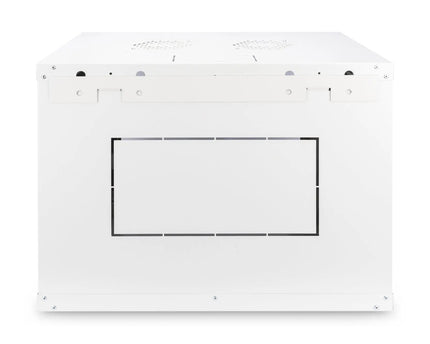

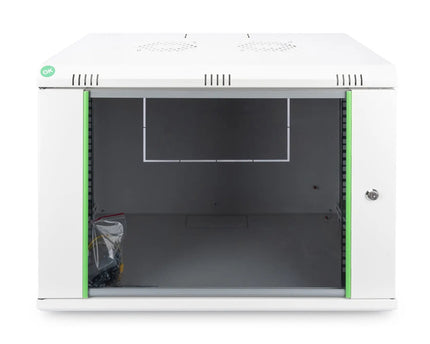

9U wall mounting cabinet, Dynamic 478x600x450 mm, color gray (RAL 7035)
9U wall mounting cabinet, Dynamic 478x600x450 mm, color gray (RAL 7035)
(€151,24 Incl. VAT)€124,99
SKU: DN-19 09-U-EC
✅ Laagste prijsgarantie!
✅ Verzending vanaf slechts € 4,95
✅ Betaal achteraf na 14 dagen
✅ 2 jaar garantie op je aankoop
Can we help you with anything?
Do you have any questions or need advice? We are happy to help you!
Contact us!
Ask your question
Our product specialist is happy to help you find the right product.
TECHNICAL DETAILS
- Protection class IP20
- Lockable safety glass door with steel frame
- 235° door opening angle
- 1-point locking on the front door
- 483 mm (19") profile rails mounted at the front and rear in the housing, galvanized
- 483 mm (19") profile rails are depth adjustable and marked with the height unit
- 0.8 - 1.2 mm robust sheet steel with high load-bearing capacity, powder-coated
- Cable entry possible at the rear, roof and bottom (pre-punched recesses)
- Roof is prepared for placing a fan element (punched out supports)
- Ventilation slots for active and passive ventilation
- 4 earthing points (bottom, side panel and front door) with protective cover
- Installation depth for components min. - max.: 335 - 380 mm
- Cabinet type: Wall mounted cabinet
- Colour: light grey, RAL 7035
- Depth: 450 mm
- Front door: Glass door, single opening
- Load capacity: 60 kg
- Side panels: Both sides
- Units: 9
- Width: 600mm
- IP protection class: IP20
- Mounted: yes
PACKAGE CONTENTS
- Grounding cable set
- Mounting kit (screws, cage nuts, washers)
- 2 x key
