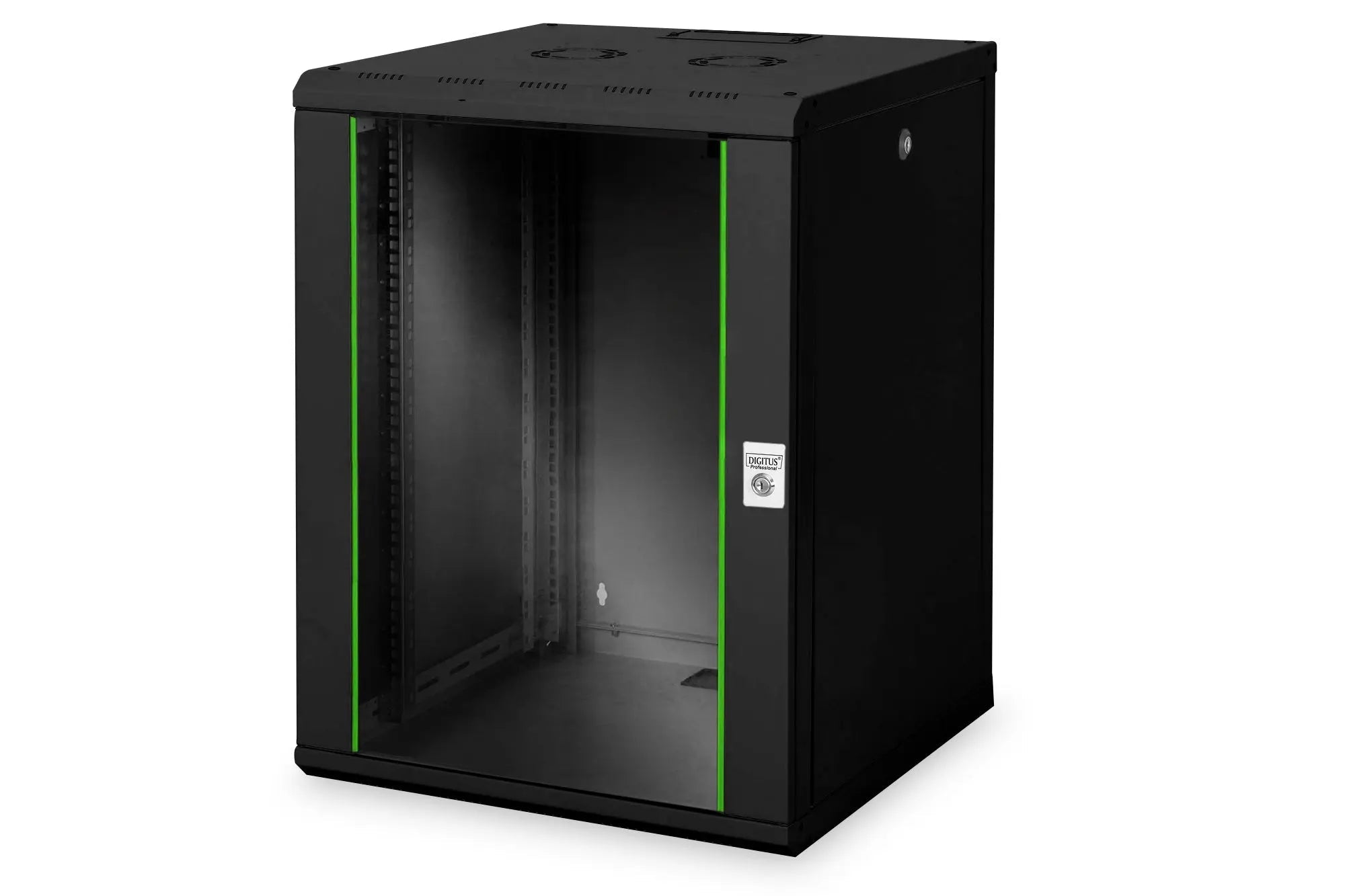

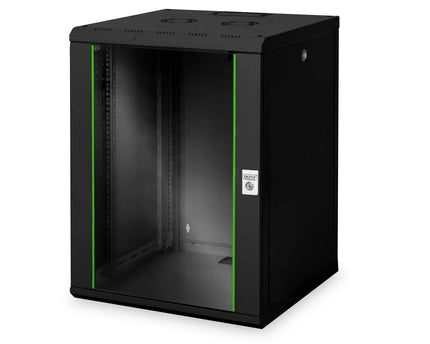

16U wall mounting cabinet, Unique 820x600x600 mm, color black (RAL 9005)

Product form

16U wall mounting cabinet, Unique 820x600x600 mm, color black (RAL 9005)

  TECHNICAL DETAILS Safety class IP20 Lockable safety glass door with steel frame 210° door opening angle 1-point locking mechanism... Read more

SKU: DN-19 16U-6/6-SW

Delivery time 3-5 working days

(€324,28 Incl. VAT)€268,00

    Need a larger quantity?

    Request a quote

    • check Lowest price guarantee!
    • check Shipping from just €5.95
    • check Pay afterwards after 14 days
    • check 2 year warranty on your purchase

    Can we help you with anything? Can we help you with anything?

    Do you have any questions or need advice? We are happy to help you!

    Contact us!

    Ask your question

    Our product specialist is happy to help you find the right product.

    Additional products

    Product description



    TECHNICAL DETAILS

    • Safety class IP20
    • Lockable safety glass door with steel frame
    • 210° door opening angle
    • 1-point locking mechanism on the front door
    • Side panels are lockable and removable
    • 483 mm (19") profile rails mounted at the front and rear inside the rack, galvanized
    • 483 mm (19") profile rails are depth-adjustable and equipped with height unit markings
    • Maximum installation depth: 450 mm
    • Cable entry at the rear and bottom with plastic cover and top with sliding cover
    • Roof is prepared for fan units (punched out entrances)
    • Ventilation slots for active and passive ventilation and extraction
    • Multiple grounding points for rack components
    • Incl. mounting kit (screws, cage nuts, washers)
    • Rack is fully assembled
    • Installation depth equipment min.-max.: 320-450 mm
    • Cabinet type: Wall mounted cabinet
    • Colour: black, RAL 9005
    • Depth: 600 mm
    • Front door: Glass door, single opening
    • Load capacity: 100 kg
    • Side panels: Both sides
    • Units: 16
    • Width: 600mm
    • IP protection class: IP20
    • Mounted: yes

    PACKAGE CONTENTS

    • Ground wire set
    • Mounting kit (screws, cage nuts, washers)
    • 2 x keys
