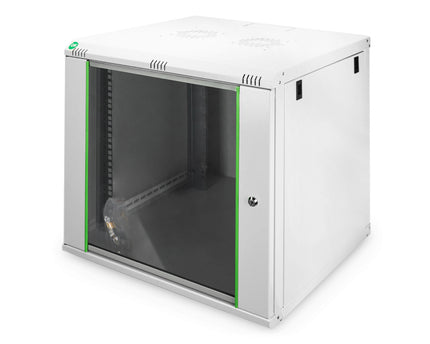

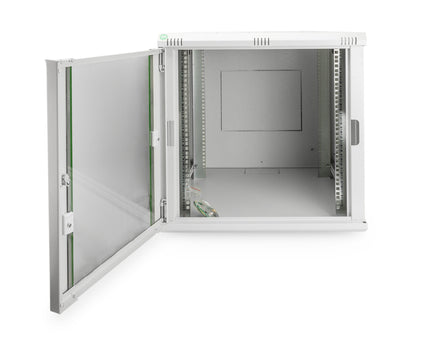

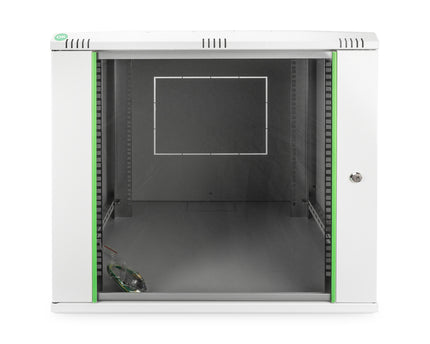

12U wall mounting cabinet, Dynamic Basic 611x600x600 mm, color gray (RAL 7035)
12U wall mounting cabinet, Dynamic Basic 611x600x600 mm, color gray (RAL 7035)
(€251,67 Incl. VAT)€207,99
SKU: DN-19 12U-6/6-EC
✅ Laagste prijsgarantie!
✅ Verzending vanaf slechts € 4,95
✅ Betaal achteraf na 14 dagen
✅ 2 jaar garantie op je aankoop
Can we help you with anything?
Do you have any questions or need advice? We are happy to help you!
Contact us!
Ask your question
Our product specialist is happy to help you find the right product.
Technical data
- Safety class rating IP20
- Lockable safety glass door with steel frame
- 235° angle of the door
- 1-point locking mechanism on the front door
- 483 mm (19") profile rails mounted to the front and rear of the inside of the rack, galvanized
- Profile rails of 483 mm (19") are adjustable in depth and equipped with height unit marking
- 0.8 - 1.2 mm thick sheet steel with high load-bearing capacity, powder-coated
- Cable entry at the rear, roof and base (pre-perforated breakouts)
- Roof is prepared for fan units (punched out entrances)
- Ventilation slots for active and passive ventilation and extraction
- 4 earthing points (plinth, side wall and front door) with protective cover
- Installation depth equipment min.-max.: 320 - 450 mm
- Cabinet type: Wall mounted cabinet
- Colour: light grey, RAL 7035
- Depth: 600 mm
- Front door: Glass door, single opening
- Load capacity: 60 kg
- Side panels: Both sides
- Units: 12
- Width: 600mm
- IP protection class: IP20
- Mounted: yes
Contents of the package
- Installation kit (screws, cage nuts, washers)
- Ground wire set
- 2 x Keys
