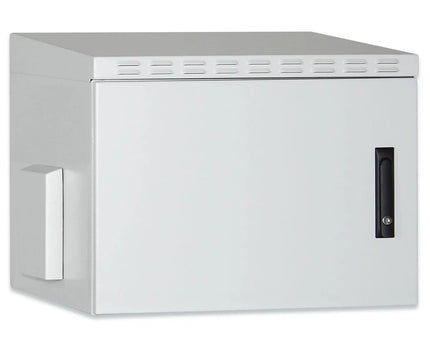

12U wall cabinet, outdoor, IP55 713x600x600 mm, color gray (RAL 7035)

Product form

12U wall cabinet, outdoor, IP55 713x600x600 mm, color gray (RAL 7035)

Technical details Safety class IP 55 Lockable steel front door with rotating handle 140° door opening angle 3-point locking mechanism... Read more

SKU: DN-19 12U-6/6-I-OD

Delivery time 3-5 working days

(€683,65 Incl. VAT)€565,00

    Need a larger quantity?

    Request a quote

    • check Lowest price guarantee!
    • check Shipping from just €5.95
    • check Pay afterwards after 14 days
    • check 2 year warranty on your purchase

    Can we help you with anything? Can we help you with anything?

    Do you have any questions or need advice? We are happy to help you!

    Contact us!

    Ask your question

    Our product specialist is happy to help you find the right product.

    Additional products

    Product description

    Technical details

    • Safety class IP 55

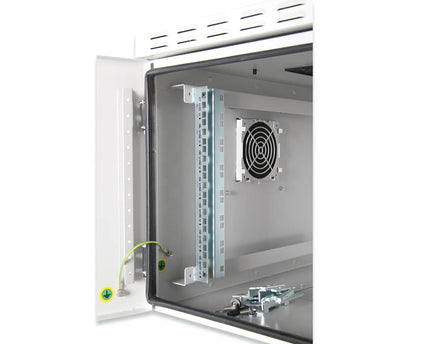

    • Lockable steel front door with rotating handle
    • 140° door opening angle
    • 3-point locking mechanism on the front door
    • Front door with earth conductor and two welded reinforcement bars in U-shape and sealing system
    • 483 mm (19") profile rails mounted on the front inside the cabinet, galvanized
    • 483 mm (19") profile rails are depth-adjustable and equipped with height unit markings
    • 1.5 mm thick sheet steel with a high load-bearing capacity, powder-coated
    • Single welded housing for increased strength

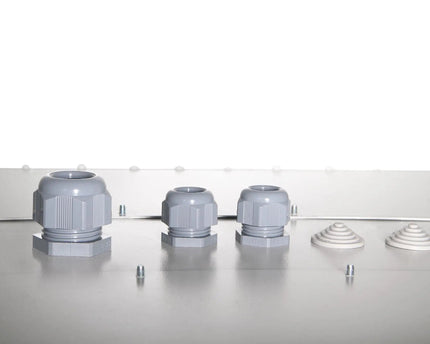

    • Cable entries in the base: 2x M32, 1x M63, 2x PVC blanking cap (with diameter of 28 mm)
    • Roof canopy provides protection for suitable fan units and provides ventilation and warm air
    • Integrated air ventilation inlets ensure the supply of fresh air
    • incl. 4 mounting brackets, 3 mm thick, as well as suitable screws and washers, for wall mounting
    • Installation depth equipment min.-max.: 142-500 mm
    • Distance from installation holes to wall mounting (H x W) in mm: 520 x 550
    • Cabinet type: Wall cabinet, outdoor
    • Colour: light grey, RAL 7035
    • Depth: 600 mm
    • Front door: Steel door, closed, single opening
    • Load capacity: 100 kg
    • Units: 12
    • Width: 600mm
    • IP protection class: IP55
    • Mounted: yes

    Package contents

    • Ground wire set
    • Mounting kit (screws, cage nuts, washers)
    • 2 x keys
